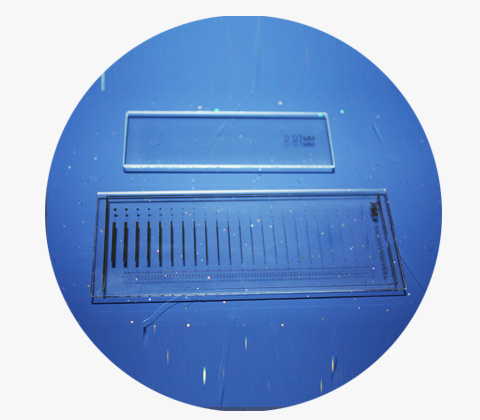

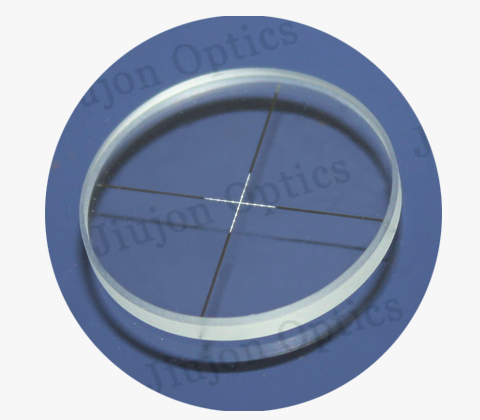

武漢新銳特光電科技有限公司可以根據客戶提供各種規格的分劃板基片
技術參數/Technical Data
尺寸/ Dimension | 規格50mm*50mm以下的各種規格 |
外形公差/Diameter Tolerance | ±0.02mm |
最小厚度/Minimum Thickness | 0.4mm |
厚度公差/Thickness Tolerance | ±0.01mm |
平行度/Flatness | ≤0.005mm |
粗糙度/Ra | ≤0.5nm |
面精度/Surface Figure | Better than λ/20@632.8nm |
外觀/Scratch and Dig | 零級 |
